概述

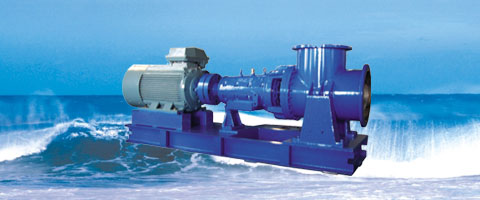

FJX型系列蒸发循环泵为大流量、低扬程轴流泵，专供磷铵、磷酸、真空制盐、氧化铝、烧碱、轻工等行业中蒸发器的强制循环用，也可作结晶器、反应器的循环泵。
性能参数
流量范围：300-1200m3/h
扬程范围：2-4m
工作压力：1MPa
工作温度：≤170℃
注：订货时用户应提供详细的数据表，由我公司根据要求的流量、扬程、介质特性，推荐合理的泵型号。
性能参数表
型号
Type |
流量Q
capacity
(m3/h) |
扬程H
head
(m) |
功率(KW) power |
效率(%)
Efficiency |
转速
Rotation speed
(rpm) |
轴功率
shaft power |
电机功率
Motor |
FJX-250 |
300 |
2.5 |
3.4 |
7.5 |
60 |
980 |
FJX-300 |
520 |
3 |
6.8 |
11 |
62 |
980 |
FJX-350 |
1350 |
4 |
29.6 |
37 |
65 |
980 |
FJX-450 |
2200 |
4 |
46.8 |
55 |
68 |
980 |
FJX-500 |
2650 |
4 |
42 |
75 |
70 |
740 |
FJX-550 |
4000 |
4 |
62.8 |
110 |
70 |
750 |
FJX-700 |
4772 |
3.3 |
56.7 |
|
75.6 |
370 |
5320 |
3.4 |
64.7 |
|
76.1 |
400 |
5700 |
3.5 |
70.7 |
|
76.9 |
430 |
6154 |
3.6 |
78.8 |
|
76.6 |
460 |
6579 |
3.6 |
85.8 |
|
75.2 |
490 |
FJX-800 |
6142 |
3.8 |
84.3 |
|
75.4 |
500 |
6790 |
3.8 |
86.7 |
|
76.8 |
7400 |
3.7 |
96.6 |
|
77.2 |
7815 |
3.7 |
102.7 |
|
76.7 |
8417 |
3.8 |
115.7 |
|
75.5 |
FJX-900 |
7748 |
3.4 |
94.3 |
|
76.1 |
424 |
8407 |
3.4 |
100.6 |
|
77.4 |
9000 |
3.5 |
110 |
|
78 |
9656 |
3.5 |
119.1 |
|
77.3 |
10280 |
3.6 |
130.2 |
|
77.4 |
FJX-1000 |
9210 |
3.4 |
111.8 |
|
76.3 |
380 |
1078 |
3.5 |
132.6 |
|
77.5 |
11000 |
3.5 |
134.4 |
|
78 |
11970 |
3.6 |
151.1 |
|
77.3 |
12700 |
3.6 |
162.8 |
|
76.5 |
FJX-1100 |
9210 |
3.4 |
111.8 |
185 |
79 |
380 |
| 10078 |
3.5 |
132.6 |
220 |
80 |
| 11000 |
3.5 |
134.4 |
220 |
81 |
| 11970 |
3.6 |
151.1 |
250 |
80 |
| 12700 |
3.6 |
162.8 |
280 |
79 |
|
